CH CNC radial feed boring head is specially designed for internal and external contour machining, slot machining, cylindrical thread and taper thread machining, end face machining, chamfer machining, spot facer machining and final machining of turntable parts.

The workpiece does not need to be removed from the machine tool to process the geometric contour you need. This function eliminates the redundant clamping time of parts, reduces the time of the whole processing cycle, reduces the quantity of work-in-process, and finally reduces the processing and manufacturing costs.

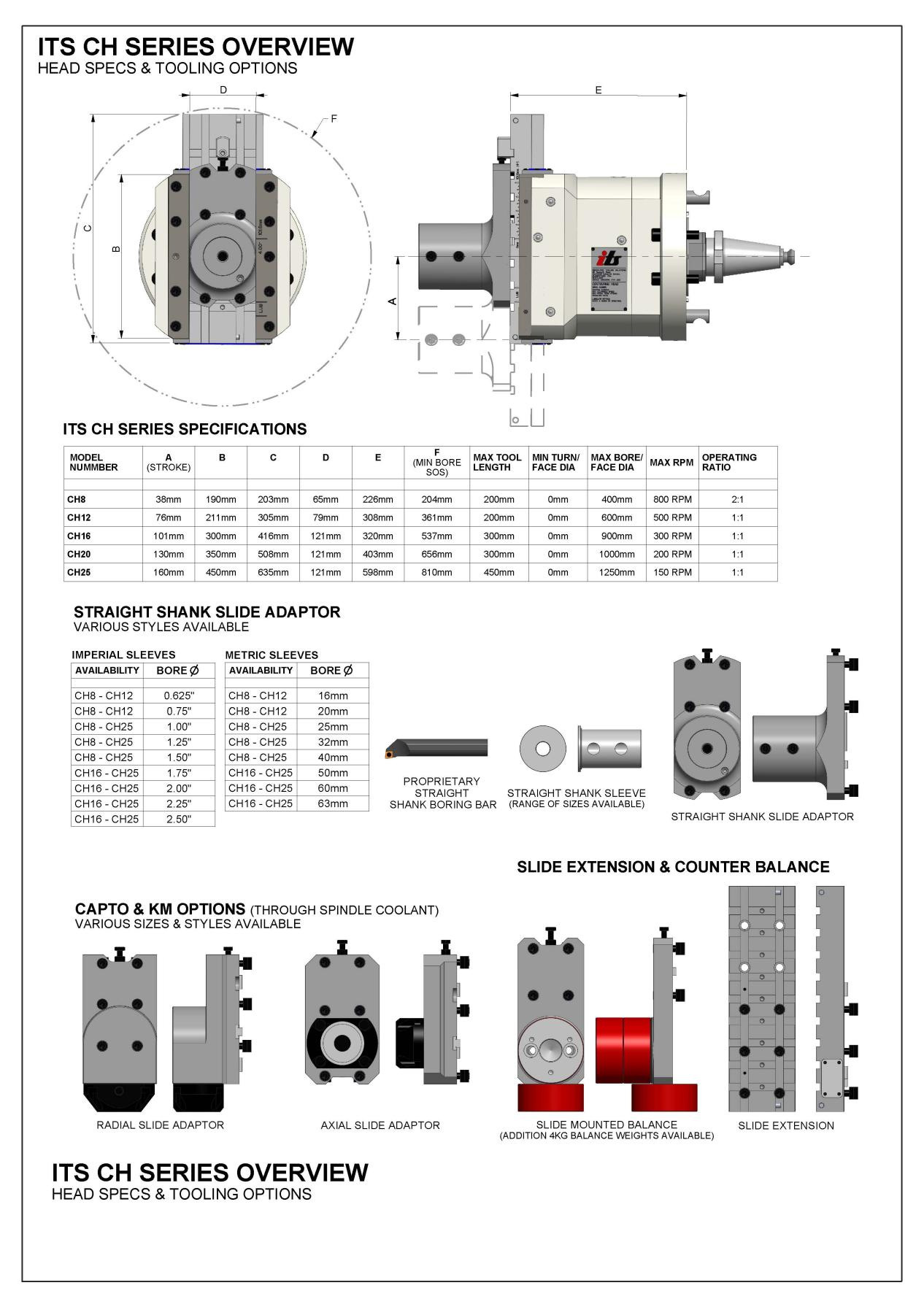

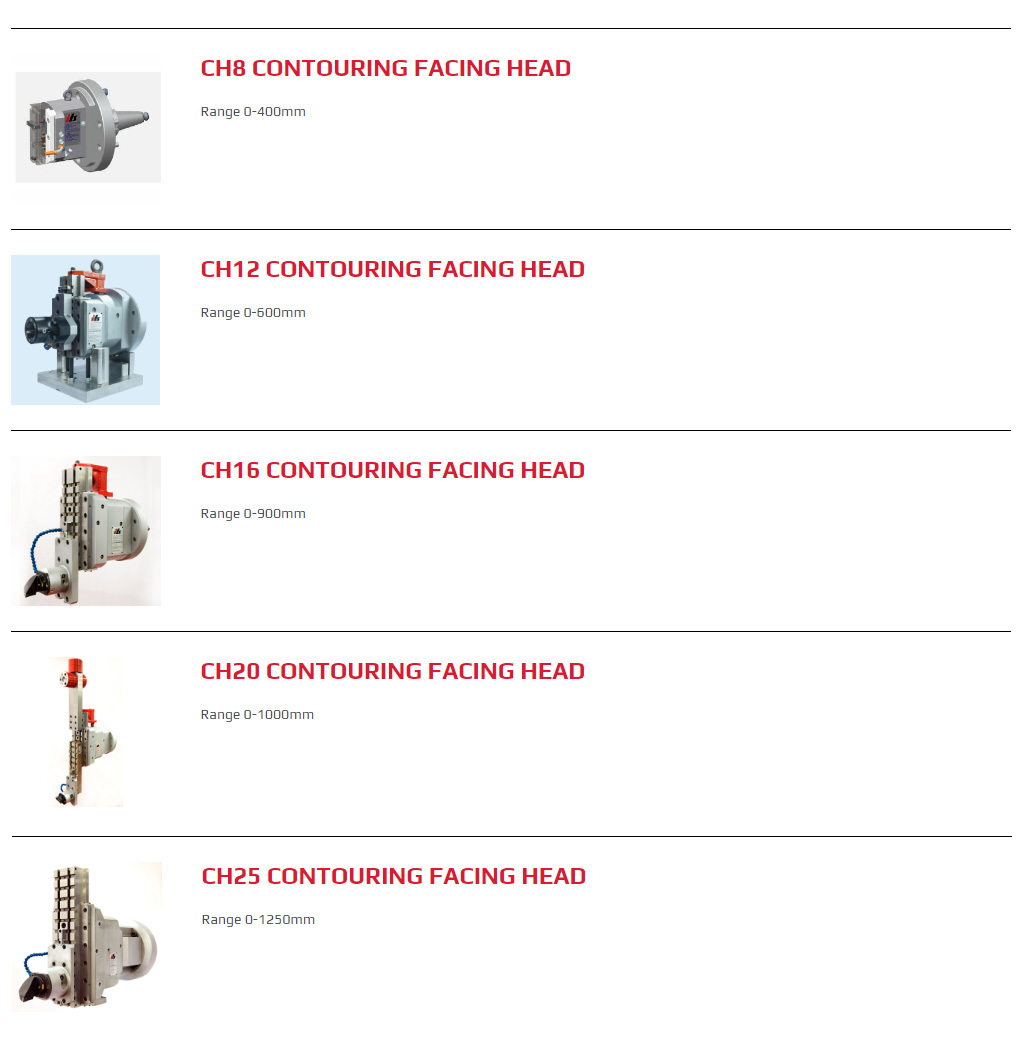

CH series CNC radial feed boring heads are divided into many different models, which are used for various cutting processes in different diameter ranges (see the models and processing capabilities in the table below).

The product is constantly developing, so as to provide users with increasing sliding plate travel, maximum tool length, maximum boring diameter and maximum plane machining diameter. The following table is only for reference. Our ITS products can also be customized according to the user's requirements to meet special modification and processing needs. Please consult Beijing Zhengke Company for details.

CH CNC radial feed boring head can be installed on the spindle sleeve in a variety of different assembly methods, including manual installation, eccentric clamping installation, automatic locking installation and automatic locking installation.

CH series CNC radial feed boring head can use standard pre-adjusted slide design and non-standard design. Users can choose a variety of standard and special tools to meet special processing needs, and can also make full use of the existing tool systems of Sandvik (Capto), Kennametal (KM), straight shank and other companies.

Some types of boring heads can be equipped with spindle internal cooling system.



Horma



HormaITS-CH8 boring and milling head

Workpiece name: joints of different sizes in petroleum machinery
Processing content: boring of cone and circle with different diameters
Workpiece material: AISI 4340
Machine tool: horizontal boring machine



HormaITS-CH8 boring and milling head

Workpiece name: turbine shell
Processing content: boring of face, complex geometric contour and circle with different diameters
Workpiece material: structural steel
Machine tool: horizontal boring machine
Applied tool: ITS-CH8 (automatic locking connection type)



HormaIITS-CH8 boring and milling head

Workpiece name: oil tank hanger for petroleum tool industry
Processing content: boring of face, circle with different diameters, taper hole and single-head thread
Workpiece material: AISI4140
Machine tool: horizontal boring machine
