Control series angle heads are mainly used for machining centers. It can be installed in the tool magazine and can be automatically converted between the tool magazine and the machine tool spindle. The angle head and its direction scale can also be adjusted 360 ° manually with the stop arm equipped with a stop pin. The output end of TCUcn universal angle head can rotate within 0 to 90 degrees. When the angle head is removed from the main shaft of the machine tool, there is a safety pin to prevent the main drive taper shank from rotating, so as to ensure that the relative position between the taper shank keyway and the stop pin remains unchanged after the angle head is removed. One of the main features of the control angle head is that its input shaft is integrated with the main drive taper handle to ensure maximum rigidity.

Horma

The shell adopts special heat treatment process and casting technology, with high rigidity
The main drive mandrel is integrated with the drive handle, which is subject to high hardness treatment and precision grinding to ensure the smoothness and high rigidity of the drive
Ultra-precision preload bearing is equipped inside, with accuracy of ABEC7 or above, and it is lubricated with grease, with long service life
Spiral bevel gears are made of special materials with strength over 300Kg/mm2, which are widely used in F1 racing, aviation and aerospace fields
The working data of each pair of gears are strictly screened and compared by computer, which can realize high torque transmission, low noise and long service life
The newly introduced lengthened angle head reduces the overall dimension and overall weight
Output end adopts double seal structure (mechanical seal+gasket)
Central cooling of coolant can be achieved
The working speed can reach 12000 rpm

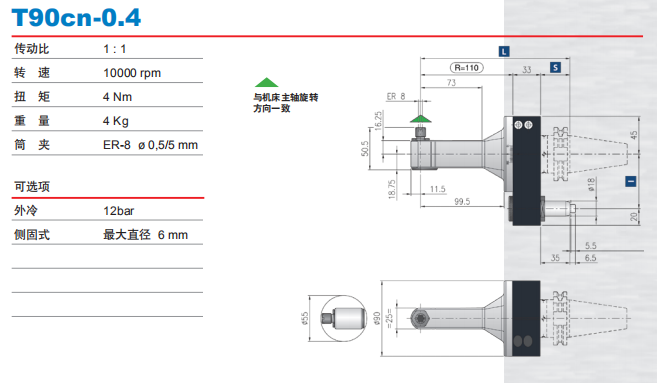

The following are some LINE CONTROL series:
